Product Descreiption
1. Basic Specifications

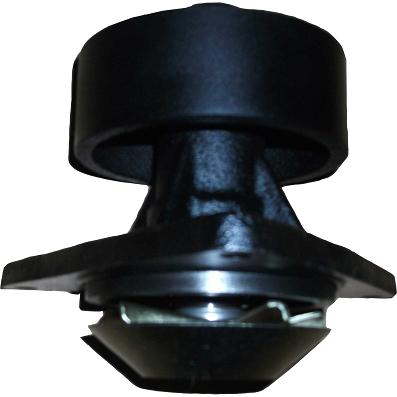

- Part Number: 3415366 (also referenced as 3415366A, UCT variant)
- Compatible Engine: Cummins 6CT / 6CTA 8.3L diesel engine
- Material: Cast iron
- Weight: Approx. 3.75 kg (OEM standard)
- Flow Rate: 230 L/min
- Head (Lift): 23.3 meters
- Drive Type: Belt-driven (engine crankshaft driven)
- Mounting: Flange-mounted (3-bolt flange design)
2. Function
This is a centrifugal-type engine coolant pump for the Cummins 6CT cooling system:
- Driven by the engine crankshaft via a V-belt.
- Draws cooled coolant from the radiator into the pump’s center inlet.
- Circulates coolant under pressure into the engine block, cylinder head, and oil cooler.
- Maintains forced circulation to dissipate heat from combustion chambers, pistons, and bearings.
- Prevents engine overheating and ensures stable operating temperature.
3. Installation Location
- Mounted: On the front side of the Cummins 6CT 8.3L engine block, below the timing gear cover.
- Position: Between the crankshaft pulley (drive side) and the engine radiator hose connections.
- Interface: Bolted directly to the water jacket of the cylinder block; inlet connects to the lower radiator hose, outlet to the engine’s internal cooling passages.
- Belt Drive: Driven by the engine’s front accessory drive belt (same belt as alternator/fan).
